CLIPPON SYSTEM

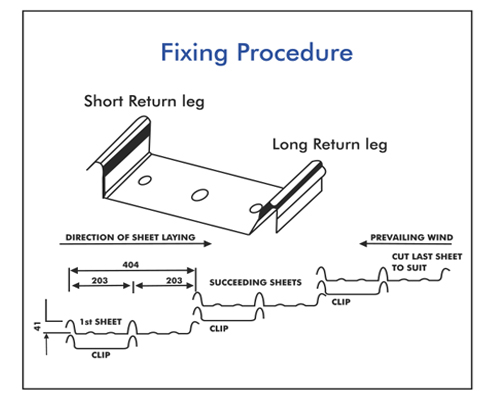

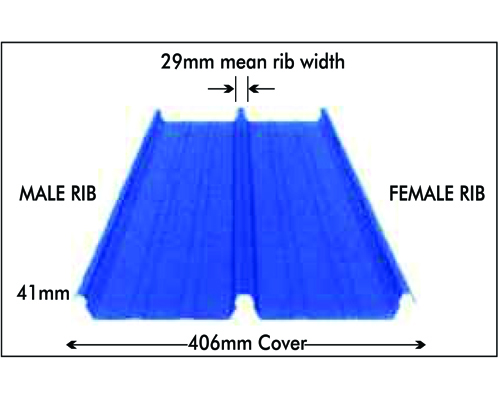

CLIPPON SYSTEM profile is designed to be fixed to roof purlin or wall gir with fixing clips which is concealed during installation and require no fastening holes through the shed. As Clippon fixing method screws are visible so there are no screw penetration. The clips are fixed directly on the support with only 2 Nos fasteners per clip thus provides positive engagement in the ribs.

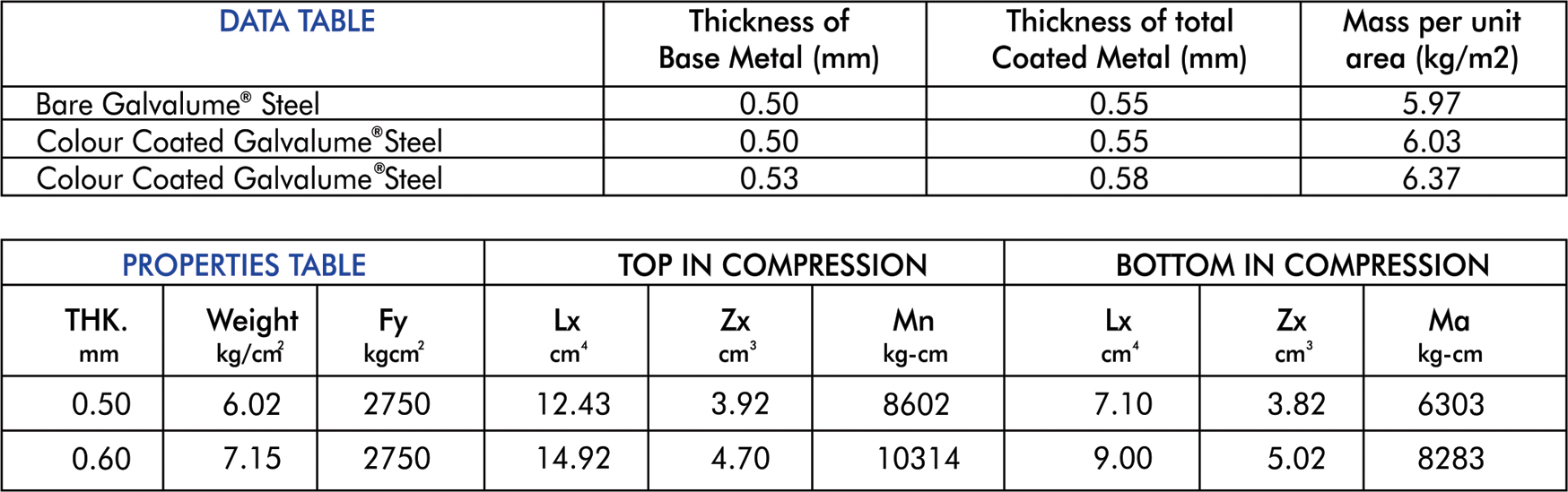

1. Weight are based on cover width for BMT as shown. Substrate is galvalume steel (150 gms/m2 coating mass).
2. Properties of profile are calculated in accordance with IS-801. Section properties take into account reduced width of compression flange in accordance width IS-801.

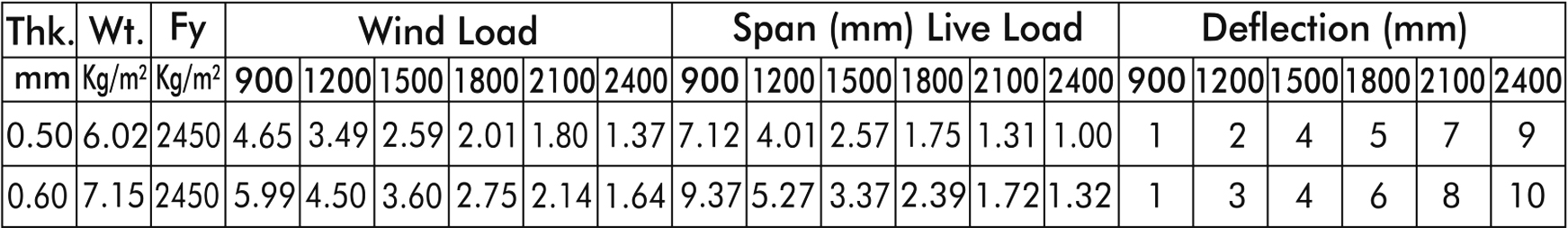

LOAD ALLOWED KPA
